LY1006A-1402
Category: Industrial robot
Welding robots are industrial robots that perform welding (including cutting and spraying). According to the definition of the International Organization for Standardization (ISO) industrial robot is a standard welding robot, an industrial robot is a multi-purpose, reprogrammable automatic control manipulator (Manipulator), with three or more programmable axes, used for field of industrial automation.
keyword: Welding Robot | Lingyun Robot | Sheet Metal Welding
Product Details
Welding robots are industrial robots that perform welding (including cutting and spraying). According to the definition of the International Organization for Standardization (ISO) industrial robot is a standard welding robot, an industrial robot is a multi-purpose, reprogrammable automatic control manipulator (Manipulator), with three or more programmable axes, used for field of industrial automation. In order to adapt to different uses, the mechanical interface of the last axis of the robot is usually a connecting flange, which can be connected to different tools or end effectors. The welding robot is to install welding tongs or welding (cutting) guns on the end flange of the industrial robot, so that it can be welded, cut or thermally sprayed.
Important parameters of the robot________________
| Scope of application | arc welding | |
| Installation method | vertical ground installation | |
| freedom of movement | 6 | |
| maximum load | 6Kg | |
| Maximum working radius | 1400mm | |
| Repeatability | ±0.05mm | |
| Maximum range of motion of each joint | J1 | ±160° |
| J2 | -1°,-150° | |
| J3 | +65°,-120° | |
| J4 | ±150° | |
| J5 | +105°,-110° | |
| J6 | ±320° | |
| Maximum speed of each joint movement | J1 | 201.9/S |
| J2 | 198.3/S | |
| J3 | 198.3/S | |
| J4 | 296.2/S | |
| J5 | 197.5/S | |
| J6 | 247.2/S | |
| total body weight | 185Kg | |
| battery capacity | 6KVA (robot)*24KVA (power supply) | |

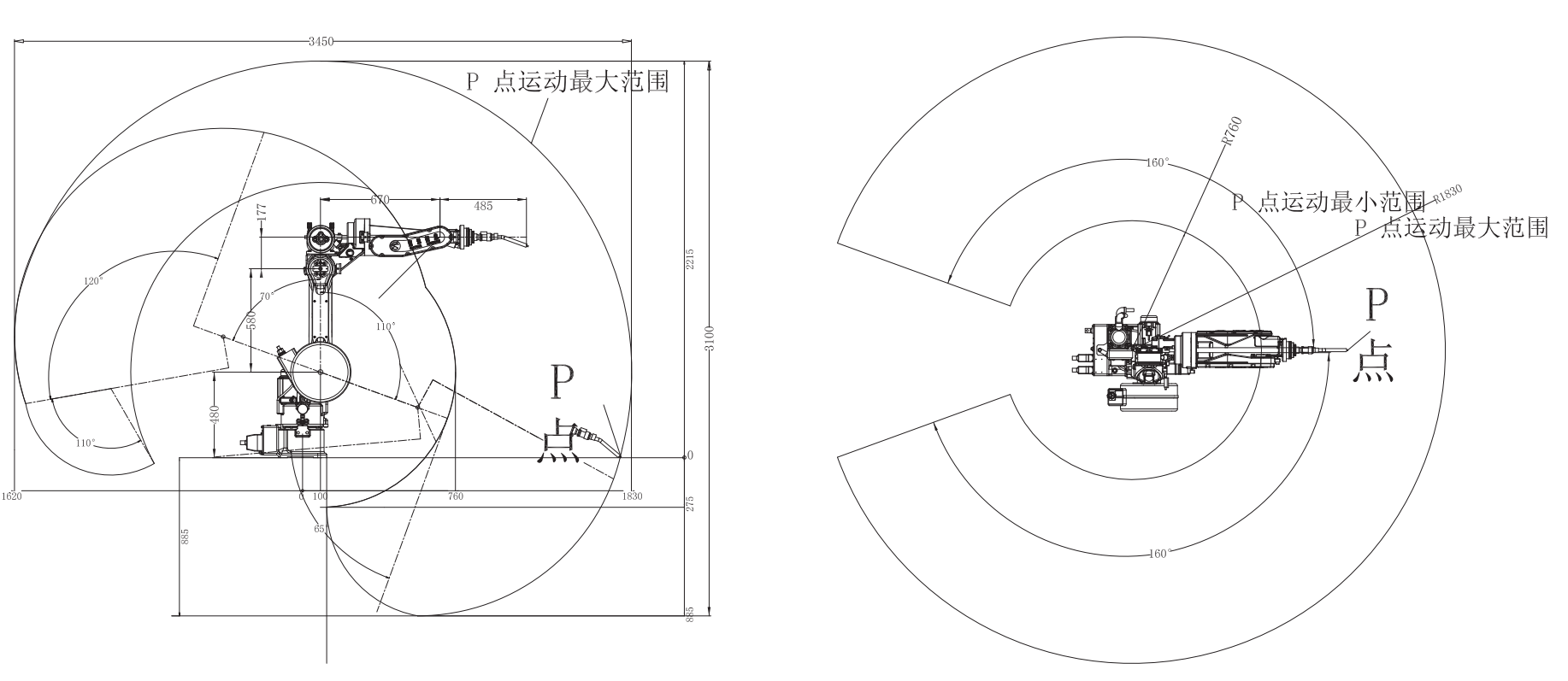

Working range and installation dimensions______________

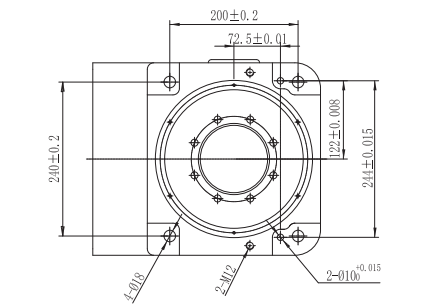

Robot base installation dimensions

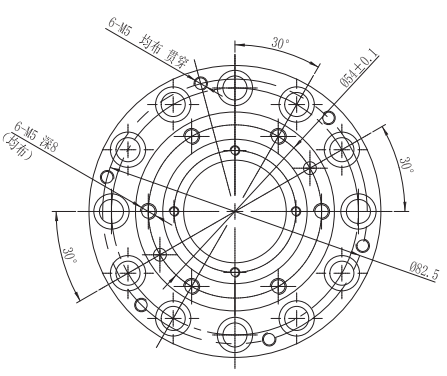

Welding torch flange mounting dimensions
