Classification
LY1020A-1800
Category: Industrial robot
Welding robots are industrial robots that perform welding (including cutting and spraying). According to the definition of the International Organization for Standardization (ISO) industrial robot is a standard welding robot, an industrial robot is a multi-purpose, reprogrammable automatic control manipulator (Manipulator), with three or more programmable axes, used for field of industrial automation.
keyword: Welding Robot | Lingyun Robot | Sheet Metal Welding
Product Details
Articulated robots, also known as articulated arm robots or articulated robotic arms, are one of the most common forms of industrial robots in today's industrial fields, and are suitable for mechanical automation in many industrial fields.
The six-axis robot has a high degree of freedom and is suitable for work with almost any trajectory or angle;
Can be freely programmed to complete fully automated work;
Improve production efficiency, controllable error rate;
It replaces many complex jobs that are not suitable for human beings and are harmful to health, such as spot welding of car shells.
The six-axis robot has a high degree of freedom and is suitable for work with almost any trajectory or angle;
Can be freely programmed to complete fully automated work;
Improve production efficiency, controllable error rate;
It replaces many complex jobs that are not suitable for human beings and are harmful to health, such as spot welding of car shells.
Important parameters of the robot___________
| Scope of application | Grinding, handling, palletizing, loading and unloading, spraying, cutting | |
| Installation method | Floor type/Stand type | |
| freedom of movement | 6 | |
| maximum load | 20Kg | |
| Maximum working radius | 1800mm | |
| Repeatability | ±0.06mm | |
| Maximum range of motion of each joint | J1 | ±170° |
| J2 | +145°,-105° | |
| J3 | +145°,-75° | |
| J4 | ±200° | |
| J5 | ±120° | |
| J6 | ±360° | |
| Maximum speed of each joint movement | J1 | 240°/S |
| J2 | 219/S | |
| J3 | 240/S | |
| J4 | 353°/S | |
| J5 | 444/S | |
| J6 | 450/S | |
| Protection class | IP65 | |
| 1/O configuration | Standard 16 in/16 out 24VDC | |
| total body weight | 280Kg | |
| battery capacity | 12.0KVA | |

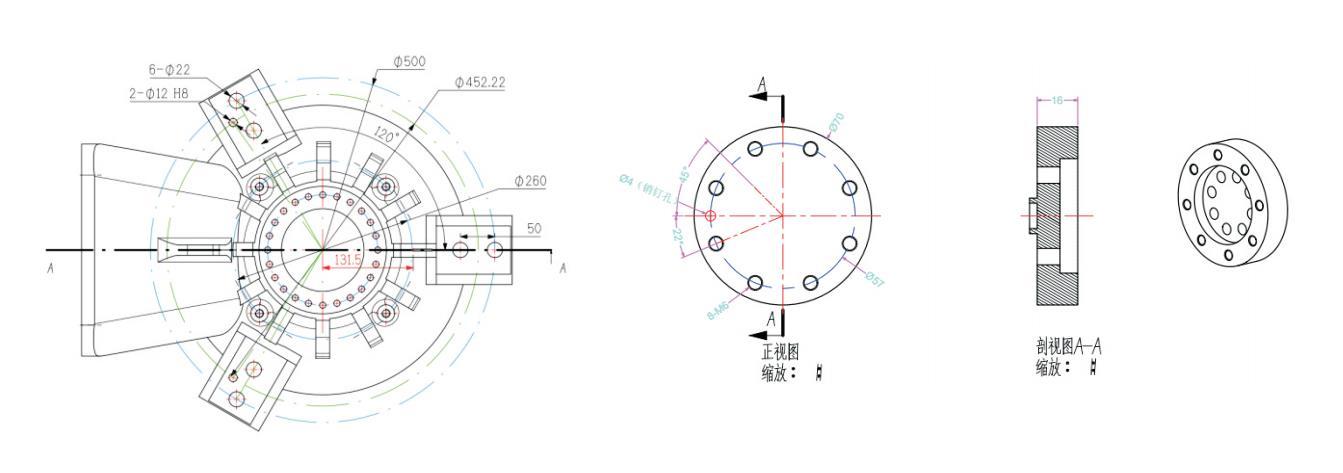

Working range and installation dimensions______________
